(4754) Used Mitutoyo PJ300 Projector
Call for Price
- Location: Burgess Hill
Description

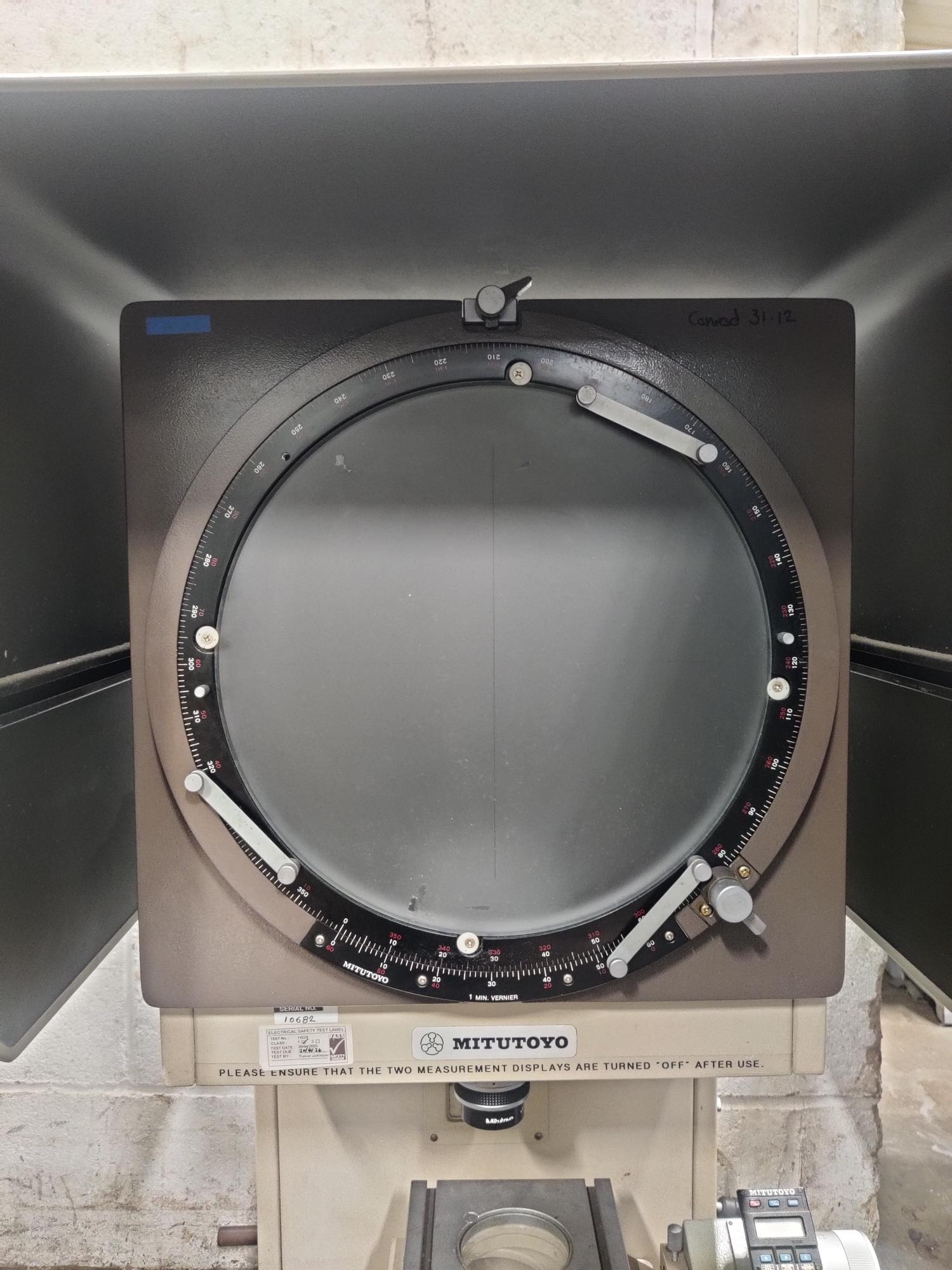

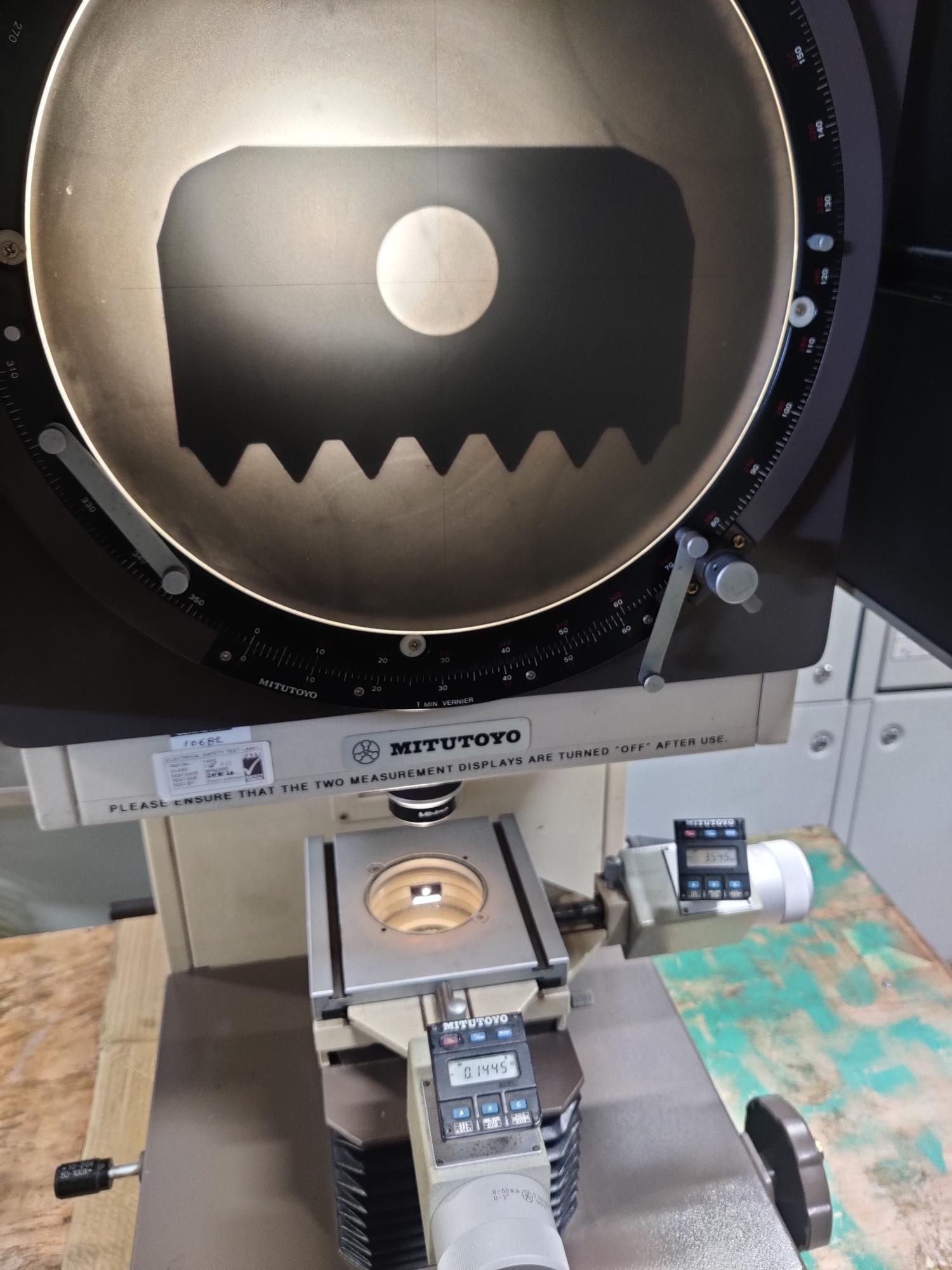

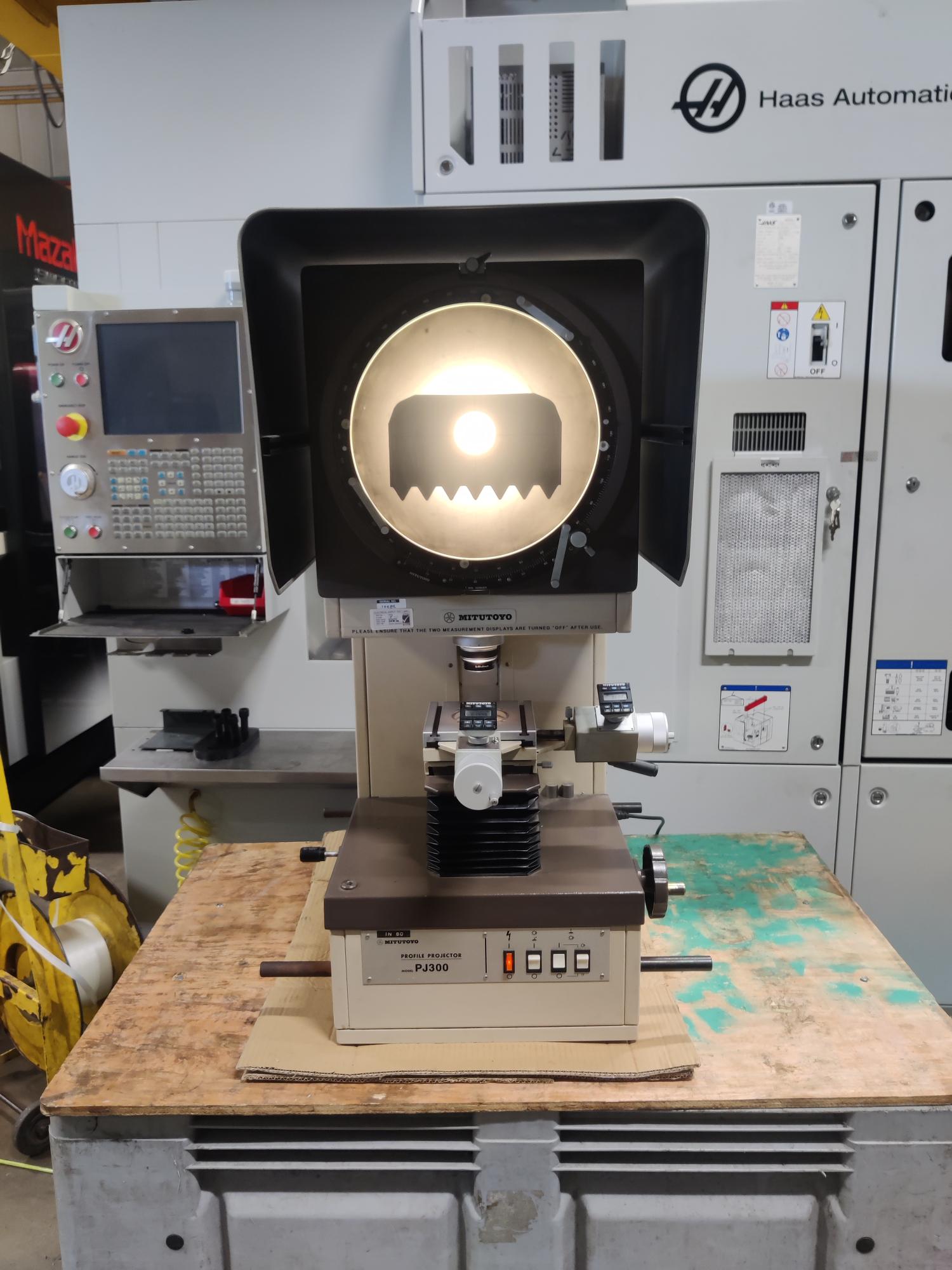

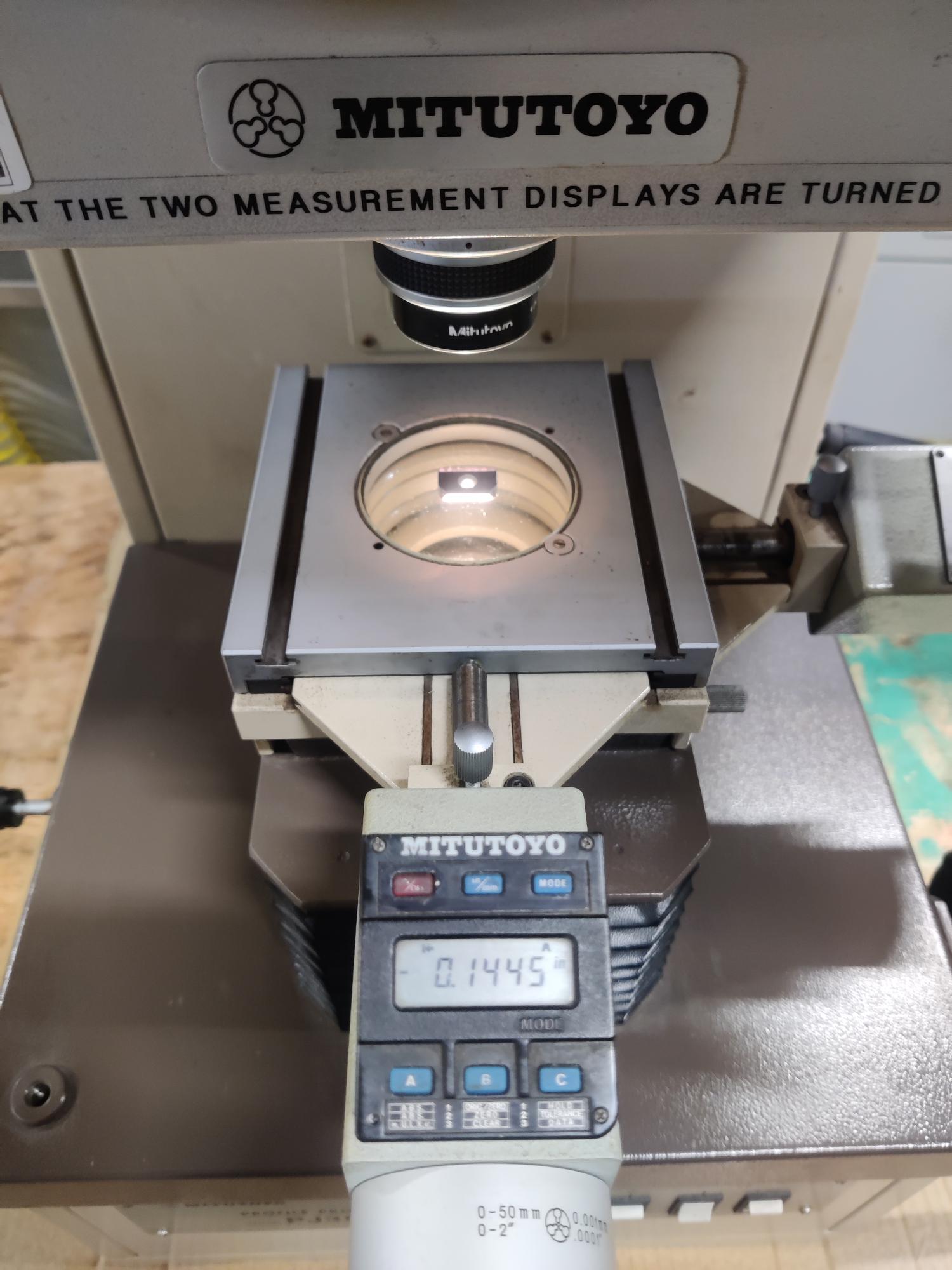

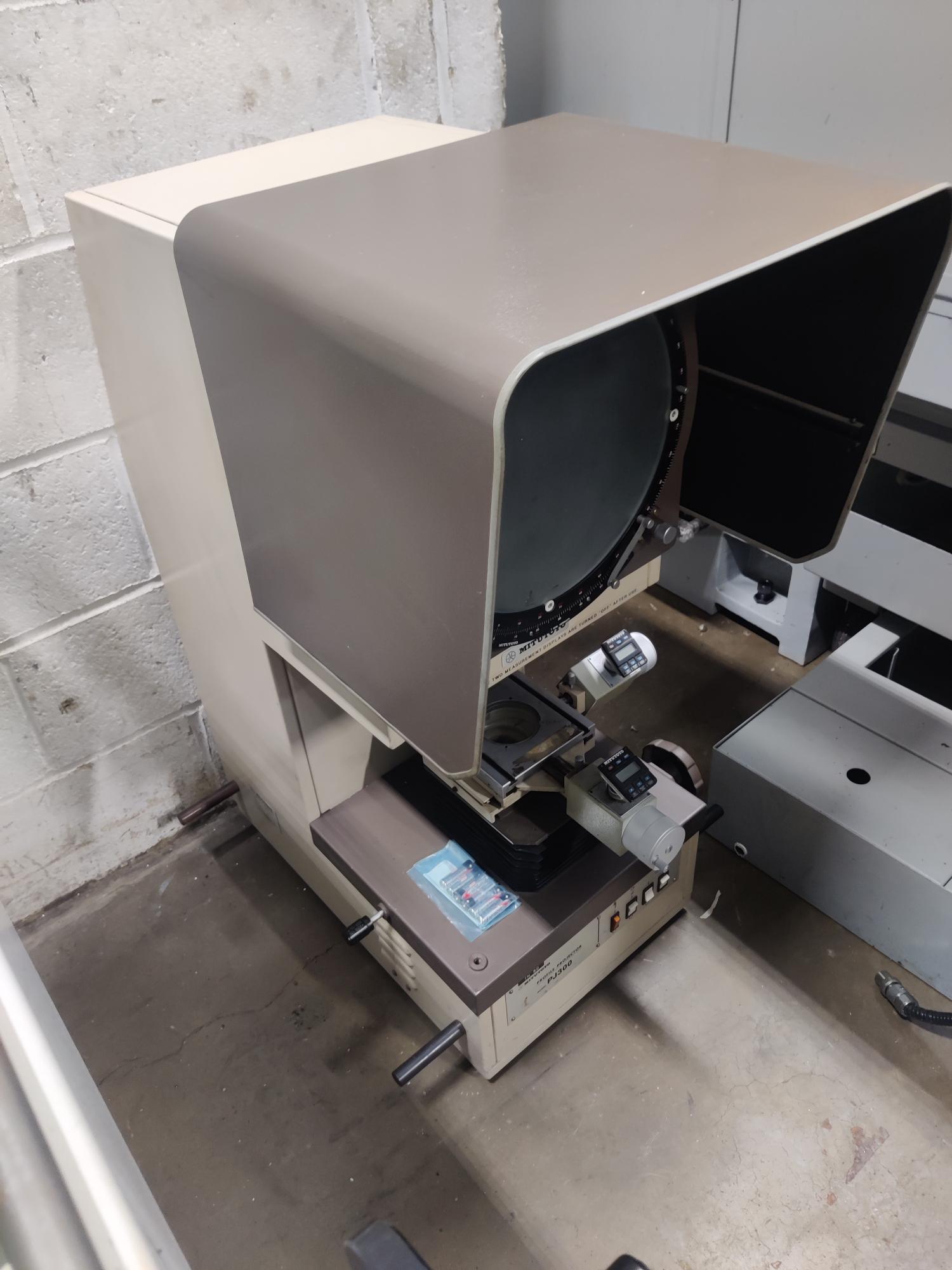

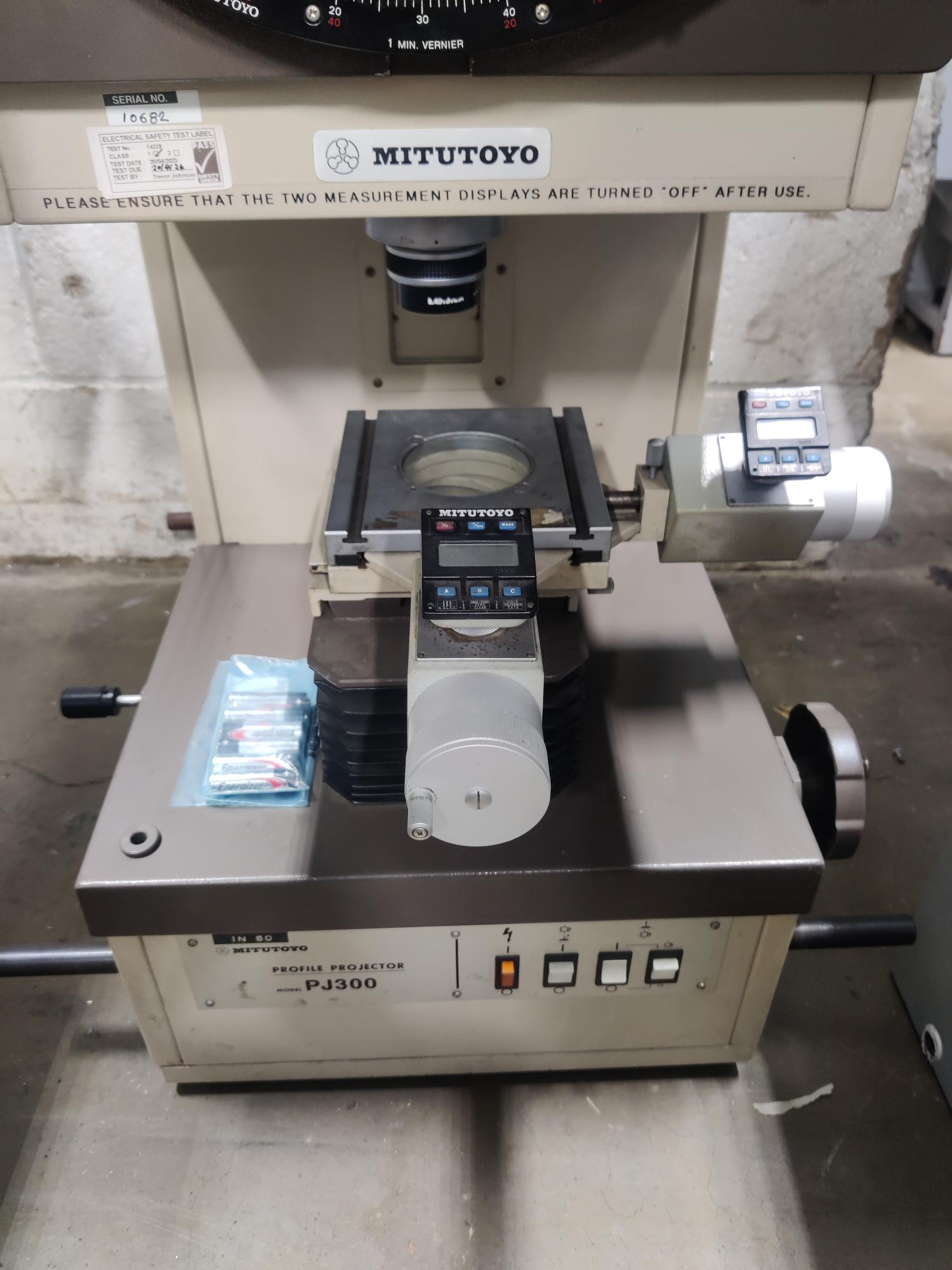

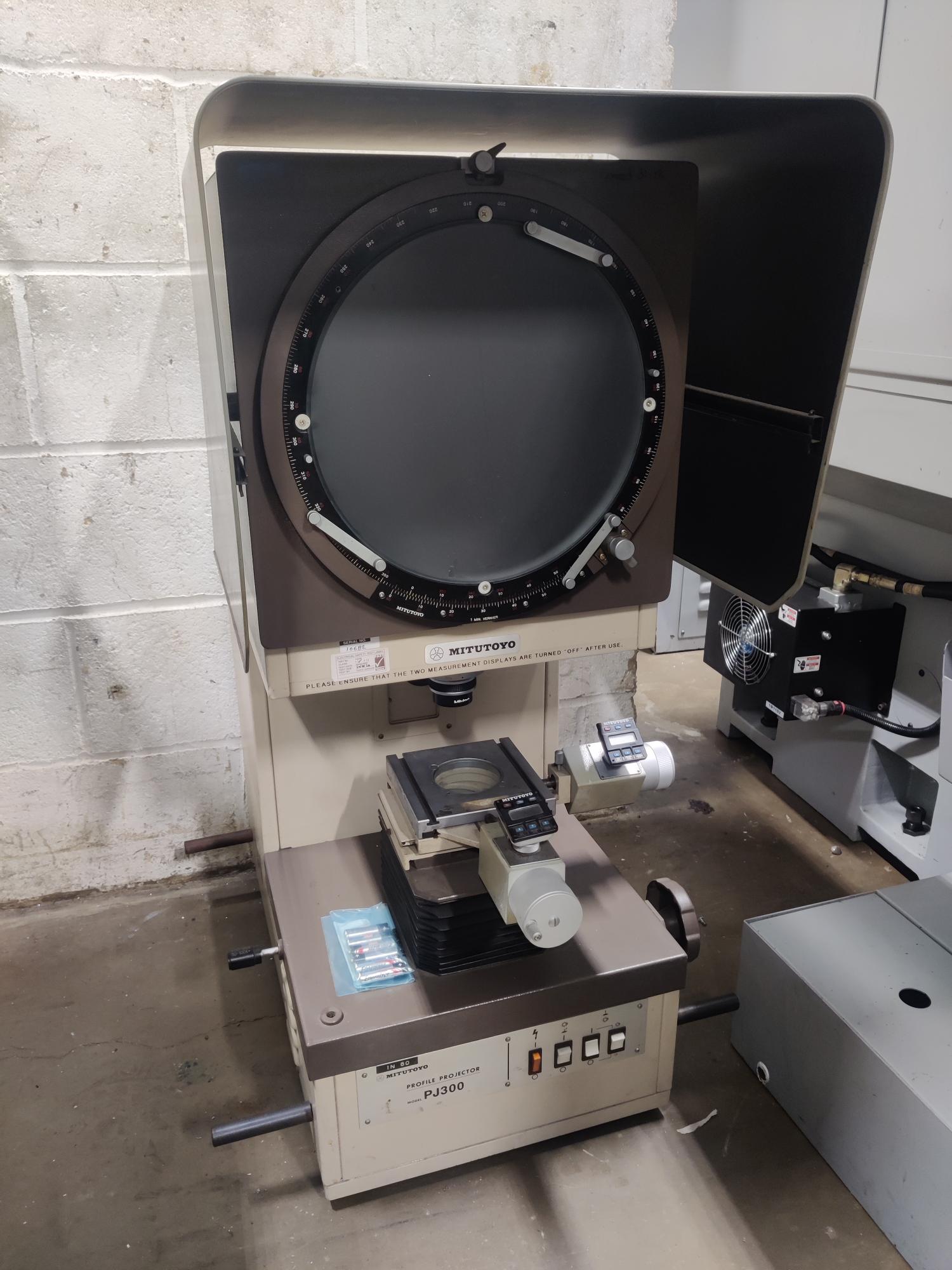

Used Mitutoyo PJ300 Projector, s/n 71388, Effective measuring diameter of protractor screen – 306mm, Resolution of screen 1 or 0.01 degree (selective), Measuring range of screen +/-360 degrees, Contour image projection, 150 x 150mm work table, Longitudinal and crosslide measurement range of 60mm, 0.001 and 0.002 precision, Whole view field 30mm dia, 360 degree projector screen, with fine adjustment, Max workpiece height 76mm, Max focusable step 66mm, Max focusable dia 150mm, complete with 10X lens
For more information on this product please call one of our experts on: +44 (0)1444 245414 and quote the four digit product reference code.
